Oboe Reed Shaping Machines

Reeds 'n Stuff

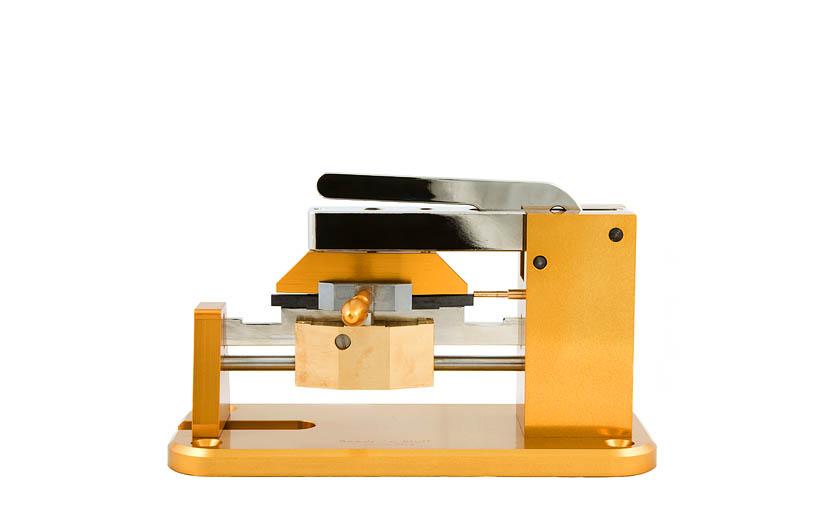

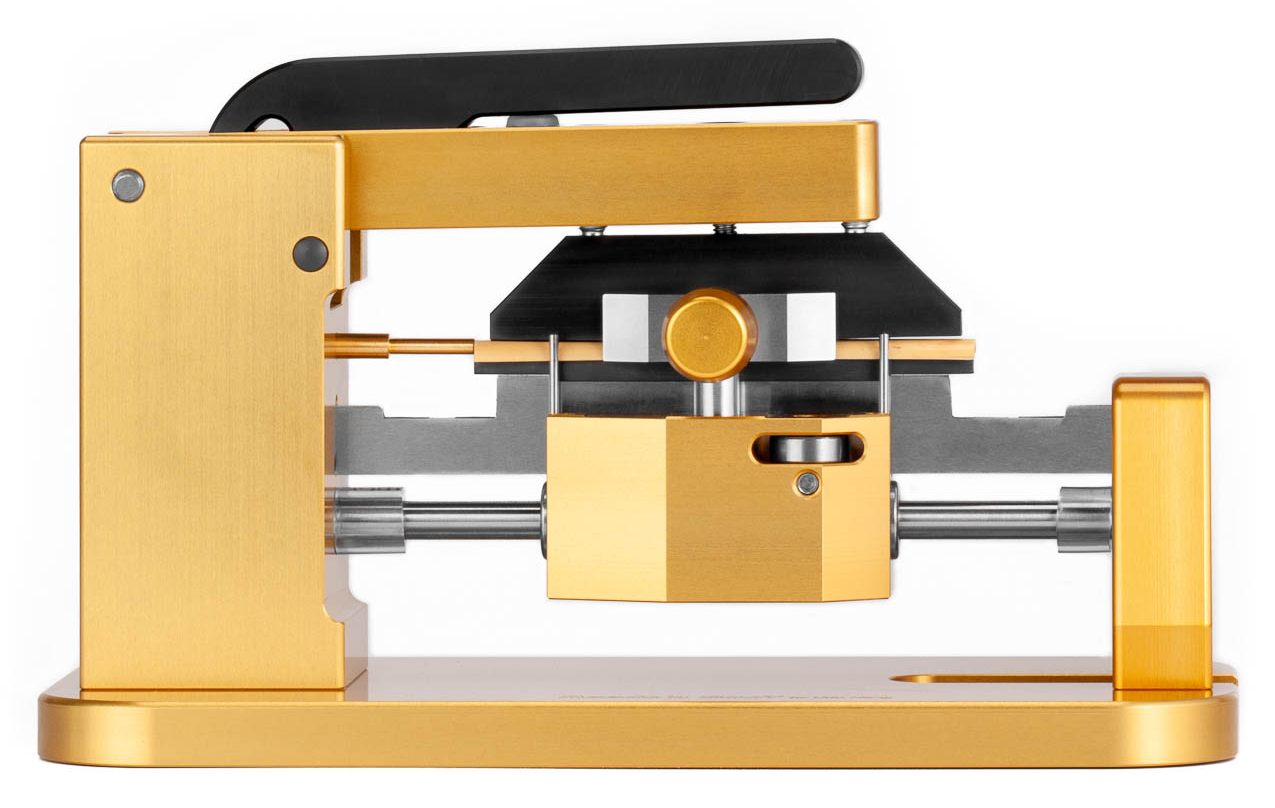

Shaping Machine for Oboe/D'amore/EH

Price includes one shaper form of your choice
Shape not in the menu? We can special order any form in the measurement table

$854

Price match: Found it lower at another U.S. dealer? We’ll match it. Details

Models

Included Shaper Form

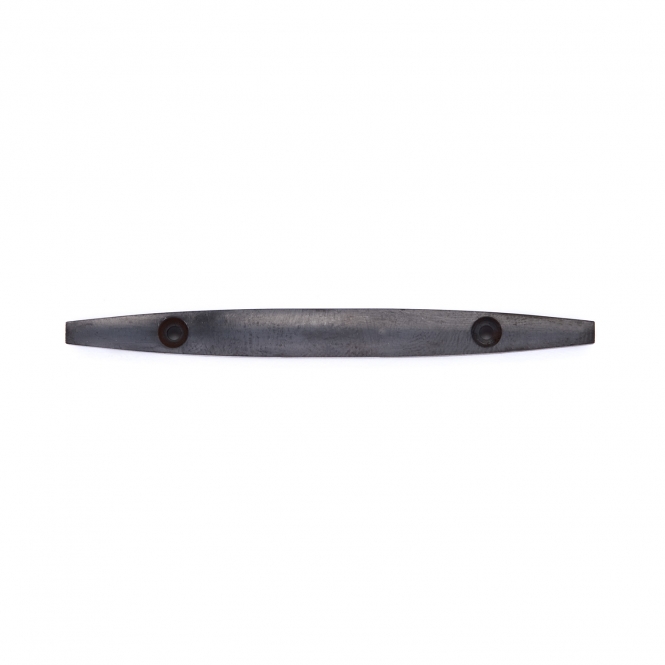

Oboe Shaper Form

Reeds 'n Stuff

For the Reeds 'n Stuff shaping machine
Shape not in the menu? We can special order it

Shaper measurements

$174

Price match: Found it lower at another U.S. dealer? We’ll match it. Details

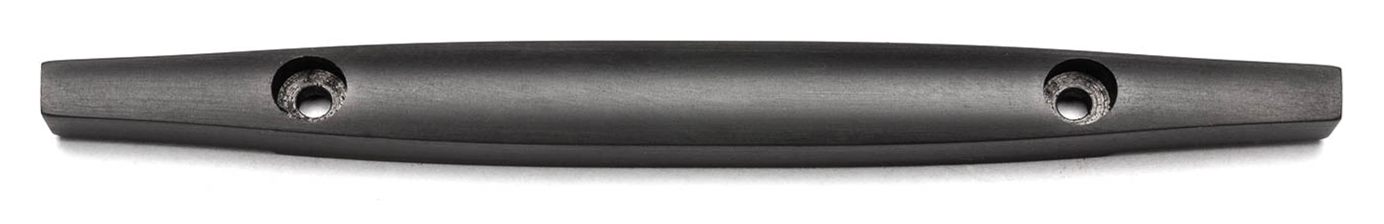

English Horn Shaper Form

Reeds 'n Stuff

For the Reeds 'n Stuff shaping machine
Shape not in the menu? We can special order it

Shaper measurements

$199

Price match: Found it lower at another U.S. dealer? We’ll match it. Details

Oboe d'Amore Shaper Form

Reeds 'n Stuff

For the Reeds 'n Stuff shaping machine
Shape not in the menu? We can special order it

Shaper measurements

$194

Price match: Found it lower at another U.S. dealer? We’ll match it. Details

Reeds 'n Stuff

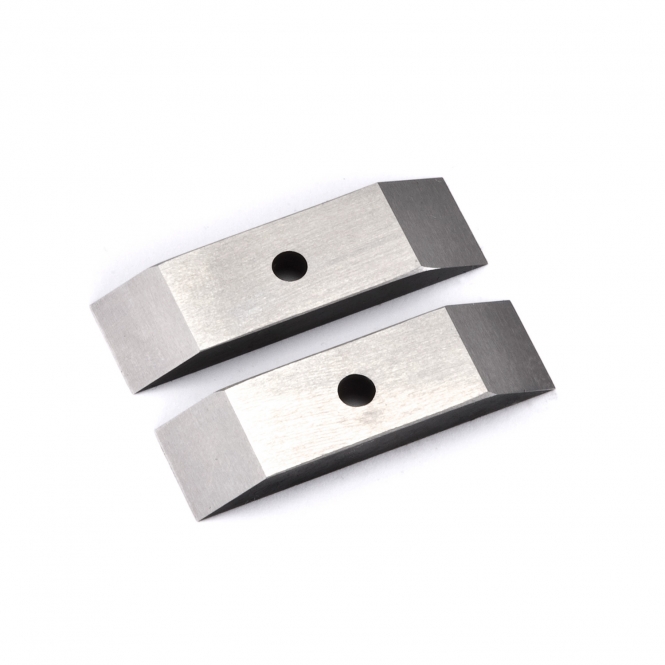

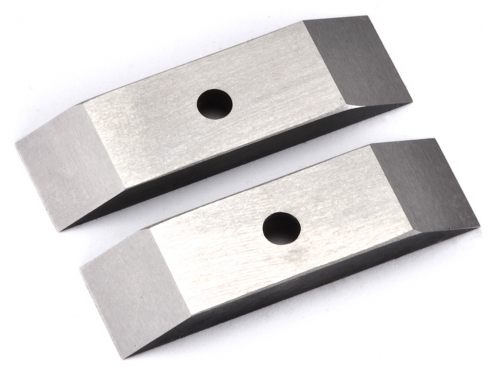

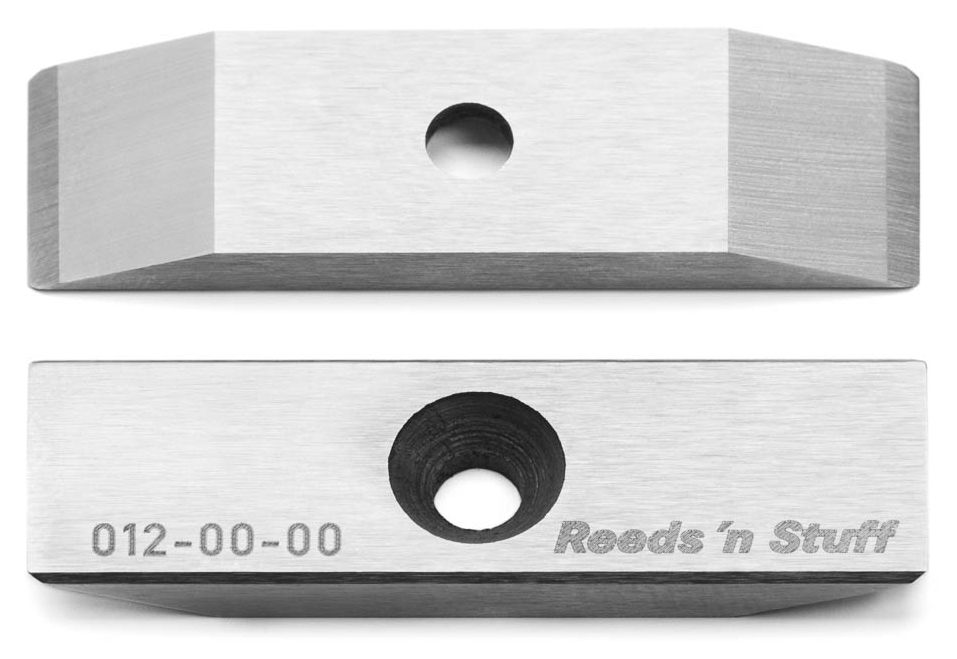

Shaping Machine Blade

$46.95

Price match: Found it lower at another U.S. dealer? We’ll match it. Details

Reeds 'n Stuff

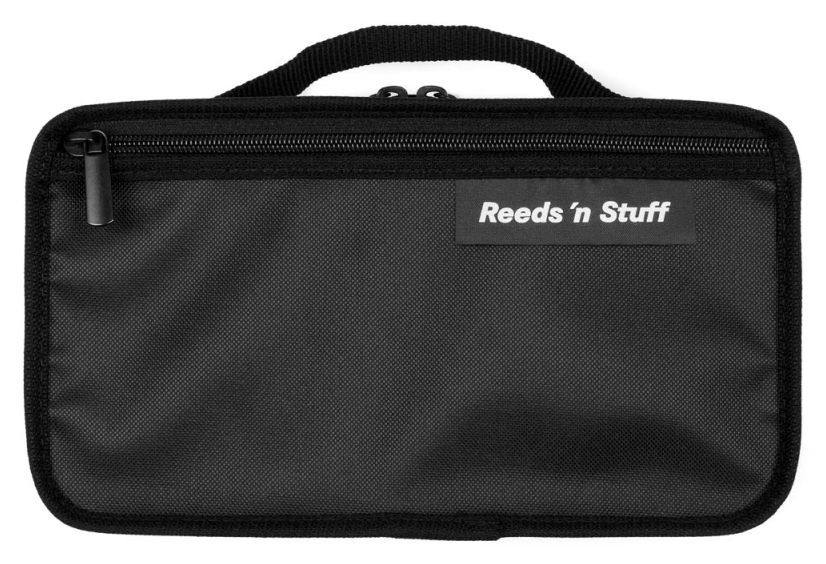

Transport Bag for Oboe Shaping Machine

25.5 × 15.5 × 13 cm
Made in Germany

Nylon carrying case with a foam interior that holds the shaping machine snugly, a zippered top compartment for its tools, and a handle. Requires the current shaping machine handles. Machine not included.

$97.30

Price match: Found it lower at another U.S. dealer? We’ll match it. Details

Reeds 'n Stuff

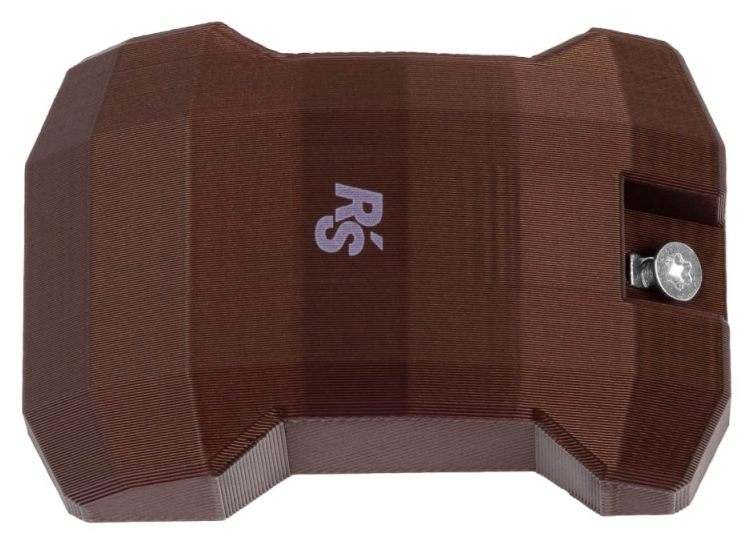

Blade Sharpening Jig PRINTS, for oboe shaping machine

Makes sharpening your shaping machine blades easy: place the blade in the jig, run it over your sharpening stone, and it's like new.

To set up, put a piece of paper under the wheels and set the blade so it touches the stone, then tighten the screw to lock the angle. Remove the paper and run the jig over the stone until the underside of the blade shows an even, reflective surface. Finish with 3–5 passes of the flat side on the stone to remove the burr.

$27.95

Price match: Found it lower at another U.S. dealer? We’ll match it. Details

Shaper Form Measurements

Widths of each Reeds ’n Stuff shaper form in millimeters. A1 is the widest point at the tip; the other columns are the widths 5, 10, 15… mm down from A1, and Total is the full length. Use the tabs to switch instruments, click a column heading to sort, or type a name to search.

Don’t see the shape you want in the shaper menus above? We can order any form in this table – ask us.

Where each shaper form width is measured: A1 at the tip, then 5 to 34 mm down, and total length

												Also known as
1	6.93	6.92	6.78	6.75		5.55	4.84	3.99			76.00
-1	6.93	6.87	6.74	6.45		5.44	5.43	3.94			76.00
-1Engraved -1EH	7.54	7.52	7.48	7.38		6.89	6.45	6.00			94.00
1NEngraved 1NEH	7.60	7.56	7.52	7.31		6.72	6.22	5.73			92.00
-1N	6.25	6.25	6.25	6.15		5.35	4.57	3.88			76.00
2	6.98	6.93	6.79	6.60		5.58	4.67	3.88			76.00
-2	6.91	6.85	6.72	6.46		5.46	4.50	3.73			76.00
AJS3	8.68	8.63	8.44	8.16		6.56	5.38	4.34			82.00
ALBRECHT MAYEREngraved ALMA	7.04	6.98	6.96	6.60		5.71	4.86	4.05			76.00
AMY	6.51	6.46	6.40	6.16		5.30	4.49	3.76			76.00
AMY-EHEngraved A-EH	7.26		7.18			6.78		5.66			94.50
ANGEL	7.01	6.99	6.91	6.72	6.28	5.63	4.81	4.09			76.00
B. PAULEngraved BPDC	11.86		10.92			7.86		7.33			78.00
BELINDA PAULEngraved BEPA	8.96		8.63			5.94		3.78			87.00
BERLINEngraved BERL	6.90		6.76			5.34		3.89			76.00
BIZZ 2Engraved BIZ2	7.28		6.98			5.46		3.90			76.00
BLM 1Engraved BLM1	9.00	8.90	8.58	7.89		5.46	4.61	3.78			76.00
BLM 2Engraved BLM2	9.00	8.83	8.62	8.15		6.06	4.78	4.10			82.00
BOHA	8.56		8.08			6.02		4.60			74.00
BOURGEEngraved BOUR	6.96	6.96	6.88	6.69	6.28	5.65	4.8	3.95	2.96		76.00
BOURGE with EarsEngraved BOUR*	7.41	7.06	6.88	6.69	6.28	5.65	4.80	3.95	2.96		76.00
BRANNENEngraved BRA	6.49	6.46	6.37	6.25		5.38	4.62	3.86			76.00	Brannen X
BRANNEN XNEngraved BXN	7.12	7.09	6.98	6.71		5.58	4.75	3.96			76.00
Caleb-1	6.98	6.43	6.38	6.27	5.87	5.22	4.42	3.67			76.00
COLEMANEngraved COL	6.67	6.66	6.63	5.57		5.60	4.67	3.82			76.00
DAS	7.53		7.42			6.26		4.60			74.00
DH 33Engraved H33	7.34	7.33	7.24	6.97		5.94	5.14	4.32			76.00
DIANAEngraved DIAN	6.90	6.88	6.82	6.59		5.51	4.69	3.97			76.00	H43, Krebs Nr. 0, Rigoutat -2
E123	8.18	8.18	8.10	7.91		7.06	6.42	5.80			93.00
EH-G	7.93	7.90	7.80	7.67		7.14	6.64	6.00			94.00
EH-R	8.32	8.27	8.20	8.03		7.25	6.50	5.84			94.00
Falstaff	7.92	7.92	7.90	7.78	7.52	7.07	6.47	5.81	5.15	4.49	94.00
FBO	9.02	8.99	8.90	8.64		7.92	7.11	6.44			94.00	Passin
FUR	7.92		7.84			6.72		5.18			94.00
GAETANOEngraved GAET	9.28	9.13	8.58	8.30		6.26	5.07	4.14			82.00
GIACOBASSIEngraved GOBA	7.96		7.82			6.92		5.70			94.00
GLOTINEngraved G	7.04	6.99	6.94	6.62		5.72	4.86	4.07			76.00
H 104Engraved H104	7.14	7.13	7.04	6.77		5.58	4.71	3.86			76.00
H 105Engraved H105	6.95	6.93	6.82	6.55		5.50	4.53	3.74			76.00
H 114Engraved H114	6.81	6.78	6.66	6.43	6.08	5.53	4.74	4.05			76.00
H 116Engraved H116	8.13	8.13	8.12	8.00		7.26	6.80	6.18			94.00
H 117Engraved H117	6.80	6.78	6.66	6.40		5.34		3.86			76.00	Passin
H 12Engraved EH12	8.31		8.28			7.50		6.44			92.00
H 125Engraved H125	9.28	9.18	8.86	8.18		5.74	4.28	3.06			82.00
H 126Engraved H126	6.86	6.81	6.66	6.44		5.46	4.72	3.94			76.00
H 127Engraved H127	6.96		6.88			5.64		3.93			76.00
H 128Engraved H128	7.92	7.90	7.89	7.70		7.02	6.40	5.80			92.00
H 13Engraved H13	7.92	7.90	7.89	7.79		7.14	6.57	5.78			94.00
H 132Engraved H132	6.98	6.95	6.90	6.69		5.78	4.97	4.26			76.00
H 148Engraved H148	9.50		9.24			7.78		6.28			90.00
H 15Engraved H15	7.02	7.02	6.88	6.62		5.64	4.81	4.00			76.00
H 153Engraved H153	8.96		8.72			6.88		5.22			77.00
H 160Engraved H160	8.82		8.74			7.20		4.44			75.00
H 167Engraved H167	9.42	9.34	9.06	8.51		6.70	5.79	5.08	4.49		82.00
H 17Engraved H17	7.04		7.02			5.62		3.04			76.00
H 177Engraved H177	8.48	8.44	8.28	7.96		6.04	5.41	4.92			82.00
H 185Engraved H185	8.73	8.69	8.46	7.86		5.80	4.76	4.28			76.00
H 21Engraved H21	7.12	7.09	6.97	6.69		5.60	5.60	4.02			75.00
H 24Engraved EH24	8.34		8.24			7.46		6.35			92.00
H 25Engraved H25	7.22	7.18	7.10	6.82		5.84	4.89	4.18			76.00	Rieger 3
H 32Engraved H32	7.40	7.40	7.36	7.18		6.20	5.34	4.46			75.00
H 38Engraved H38	6.90	6.88	6.83	6.59		5.52	4.69	3.99			76.00
H 39Engraved H39	7.06	7.00	6.90	6.60		5.50	4.64	3.94			76.00
H 40Engraved H40	7.05		6.84			5.38		3.88			76.00	Brannen X Narrow, Prestini 2
H 49Engraved H49	7.03	6.99	6.91	6.62		5.66	4.77	4.07			76.00
H 50Engraved H50	7.40	7.40	7.34	7.10		6.08	5.23	4.28			76.00
H 52Engraved H52	8.98		8.54			6.06		4.56			90.00
H 54Engraved EH54	7.80	7.79	7.70	7.44		6.26	5.41	4.60			87.00
H 56Engraved H56	7.34	7.32	7.26	7.02		5.81	4.85	4.02			76.00
H 57Engraved H57	6.93	6.87	6.75	6.44		5.31	4.59	3.93			76.00
H 57BEngraved H57B	6.94	6.89	6.74	6.47		5.38	4.64	3.96			76.00
H 6Engraved H6	6.92	6.88	6.78	6.54		5.42	4.61	3.80			76.00
H 61Engraved H61	8.22	8.21	8.20	8.09		7.54	6.82	6.40			94.00
H 62Engraved H62	7.12	7.09	7.00	7.09		5.73	5.00	4.20			76.00
H 64Engraved H64	7.00	6.99	6.96	6.73		5.42	4.64	4.30			76.00	M 7.25
H 69Engraved H69	7.10	7.10	7.06	6.82		5.69	4.85	4.02			76.00	Krebs Nr. 3
H 70Engraved H70	7.02	7.00	6.96	6.65		5.42	4.58	3.78			76.00
H 71Engraved H71	6.99		6.93			5.64		3.95			76.00
H 77Engraved H77	8.48		8.32			5.88		4.94			73.00
H 80+Engraved H80+	8.26	8.25	8.12	7.90		7.00	6.32	5.72			94.00
H 81WEngraved H81W	8.04		7.90			6.88		5.56			94.00
H 82Engraved H82	8.70		8.42			5.86		3.90			81.10
H 83bEngraved H83B	8.47		8.30			6.94		5.28			81.00
H 87Engraved H87	7.00	6.99	6.94	6.68		5.68	4.84	4.02			76.00
H 96Engraved H96	6.87	6.87	6.77	6.58		5.33	4.43	3.69			76.00
H 98Engraved EH98	7.84		7.78			6.82		5.52			94.00
H 99Engraved H99	7.00	6.97	6.89	6.65		5.29	4.55	4.07			76.00	Weber C
HALICKIEngraved HALI	6.82	6.80	6.76	6.60		5.58	4.82	4.06			76.00
HOOP	6.64	6.57	6.50	6.21		5.50	4.49	3.66			76.00	MacP
HRM	7.76	7.76	7.74	7.61	7.27	6.82	6.20	5.47			94.00
INGO	7.02	7.00	6.92	6.64		5.68	4.48	4.06			76.00
Joshua+2	6.50	6.50	6.44	6.28	5.88	5.23	4.40	3.65			76.00
KA	7.77	7.77	7.74	7.56	7.08	6.48	5.70	4.89	4.32	3.95	94.00
KESTRELEngraved KEST	6.56	6.52	6.35	6.15		5.22	4.45	3.75			76.00
KLAS	7.78	7.74	7.53	7.07		5.58	4.63	4.05			82.00
KLM	7.81	7.78	7.62	7.29		5.96	5.02	4.33			82.00
KLOPFER 750aEngraved K750	6.88	6.84	6.75	6.64		5.75	4.64	3.76			75.00
KLOPFER 845/5Engraved K845	7.96	7.94	7.89	7.78		7.22	6.73	6.17			94.00
LAWLEYEngraved LAWL	6.92	6.88	6.78	6.54		5.40	4.70	4.12			76.00
LM 2Engraved LM2	6.92	6.92	6.88	6.68		5.30	4.62	3.92			76.00
LM 3Engraved LM3	6.94	6.93	6.89	6.75		5.52	4.79	4.21			76.00	RC 13
LM 4Engraved LM4	7.03	7.01	6.94	6.65		5.28	4.49	3.90			76.00	RC 14
LM 5Engraved LM5	6.94	6.93	6.91	6.70		5.41	4.63	4.03			76.00
LORÉE 1Engraved LOR1	6.65	6.63	6.62	6.47		5.38	4.44	3.68			76.00
LORÉE 2Engraved LOR2	7.30		7.12			5.84		4.16			76.00
LORY	6.94	6.90	6.86	6.56		5.46	4.33	3.65			76.00
LUCARELLIEngraved LUC	6.65	6.62	6.61	6.59		5.52	4.50	3.82			76.00
M 725Engraved M725	7.02	6.97	6.94	6.75		5.40	4.65	4.34			76.00
MACK +Engraved Mac+	6.58	6.53	6.38	6.17		5.03	4.17	3.43			76.00
MACK ++Engraved MC++	6.66	6.58	6.44	6.25		5.16	4.31	3.55			76.00
MAK	6.83		6.77			5.65		4.05			76.00
MANUELEngraved MANU	6.70	6.69	6.68	6.60		5.68	4.85	4.06			76.00
MARKOWSKIEngraved MARK	7.39	7.38	7.33	7.10		6.08	5.23	4.29			76.00
MASMANOEngraved MAS	7.09	7.06	7.01	6.76		5.44	5.10	5.10			76.00
MAXWELL SPIERSEngraved MSPE	8.00		7.86			6.95		5.73			93.50
MEZRAQ	6.58	6.58	6.48	6.28	5.91	5.30	4.44	3.65			76.00
MIBO	8.58		8.41			6.61		5.05			94.20
Mimi	8.03	8.02	7.95	7.78	7.52	7.05	6.47	5.93	5.30	4.63	94.00
MÜLLEREngraved MÜLL	6.67	6.62	6.43	6.25		5.27	4.60	3.80			76.00
NICK	6.93	6.93	6.87	6.66		5.32	4.59	3.91			76.00
OBOE	8.60	8.55	8.48	8.37		6.48	4.69	3.60			92.00
OBOE D'AMOREEngraved ODAM	9.47		9.37			7.11		3.85			82.00
ODCA	10.24	10.20	10.13	9.95		7.54	5.70	4.17			92.00
ORTEGAEngraved RORT	7.05		6.96			5.71		4.05			76.00
OSLO	6.78		6.70			5.20		3.84			76.00
OSLO 2Engraved OSL2	6.95	6.89	6.81	6.57		5.32	4.48	3.70			76.00
PROF. CHRISTIAN SCHMITTEngraved CS	7.10	7.10	7.04	6.80		5.63	4.80	4.04			76.00
QING with EarsEngraved QING	7.54		6.93			5.81		4.21			76.00
R. WEIGALLEngraved WGAL	6.97	6.93	6.84	6.57		5.38	4.50	3.70			76.00
R2	6.74	6.65	6.46	6.28	5.90	5.35	4.59	3.90			76.00
RC1	8.07	8.07	8.03	7.96		7.37	6.66	5.94			93.00
RC11	6.90	6.90	6.86	6.63		5.32	4.53	3.98			76.00
RC11* with EarsEngraved RC11*	6.90	6.90	6.86	6.63		5.32	4.53	3.98			76.00
RC12	6.92	6.92	6.88	6.65		5.31	4.52	3.94			76.00
RC12* with EarsEngraved RC12*	6.92	6.92	6.88	6.65		5.31	4.52	3.94			76.00
RC13	6.96	6.96	6.93	6.72		5.46	4.70	4.14			76.00
RC13* with EarsEngraved RC13*	6.96	6.96	6.93	6.72		5.46	4.70	4.14			76.00
RC14	7.00	6.99	6.94	6.70		5.44	4.69	4.12			76.00
RC14* with EarsEngraved RC14*	7.00	6.99	6.94	6.70		5.44	4.69	4.12			76.00
RC15	7.01	7.01	6.97	6.76		5.48	4.72	4.16			76.00
RC15* with EarsEngraved RC15*	7.01	7.01	6.97	6.76		5.48	4.72	4.16			76.00
RC1N	8.06	8.05	7.99	7.89		7.08	6.26	5.51			93.00
RC2	8.11	8.11	8.06	7.89	7.56	7.07	6.42	5.82			93.00
RC3	8.24	8.24	8.15	8.10	7.59	7.07	6.39	5.77			94.00
RCOA1	7.44	7.44	7.32	7.00		5.79	4.84	4.00			76.00
RDG 1Engraved rdg1	6.94	6.87	6.74	6.51	6.23	5.74	4.94	4.08			76.00
RDG 1Engraved rdg1	8.2	8.14	8.05	7.9	7.64	7.3	6.96	6.61	6.03	5.18	94.00
RDG 2Engraved rdg2	7.14	7.08	6.90	6.66	6.32	5.70	4.78	3.99	3.24		76.00
RDG-1	8.04	8.03	7.87	7.61	7.31	6.96	6.57	6.16	5.57	4.72	94.00
RDG-1	6.63	6.62	6.52	6.30	5.91	5.34	4.58	3.83			76.00
RDG-1N	7.65	7.63	7.53	7.37	7.12	6.79	6.29	5.78	5.18	4.48	94.00
RDG-1N	6.62	6.62	6.54	6.34	5.92	5.36	4.60	3.86	3.17		76.00
RDG-2	6.99	6.98	6.88	6.68	6.29	5.69	4.87	4.05			76.00
RIGOUTAT 2Engraved RIG2	7.12	7.09	7.00	6.78		5.74	5.00	4.22			76.00
RITA-EHEngraved RIEH	7.81		7.76			7.04		5.80			94.00
RM	6.53		6.40			5.34		3.96			76.00
ROBINSONEngraved ROBI	6.90		6.72			5.52		4.04			76.00
RSO FRANKFURTEngraved RSO1	7.00	6.97	6.85	6.65		5.36	4.55	3.91			76.00
SAMSON +Engraved SAM+	6.57		6.53			5.14		3.57			76.00
SB	8.58	8.56	8.54	8.42	7.92	7.15	6.15	5.16	4.07		76.00
SHAPIROEngraved SHAP	8.78	8.72	8.68	8.26		7.40	5.47	5.86			92.00
STANESBY 415Engraved S415	8.98		8.92			6.70		3.70			80.00
STUTTGARTEngraved STUTT	7.58		7.52			6.54		5.04			94.00
SWE	8.00	8.00	8.00	7.86	7.49	7.01	6.46	5.97			94.00
THOMASEngraved THOM	7.09	7.06	7.00	6.76		5.68	4.77	4.00			76.00
USA	6.48	6.44	6.29	6.08		5.22	4.36	3.61			76.00
VAL2	6.94	6.93	6.89	6.75	6.24	5.52	5.16	5.16			76.00
VALEROEngraved VAL	8.05	8.04	7.98	7.90		7.08	6.32	5.52			94.00
VARCOL RSO Ffm.Engraved VARC	7.11	7.08	7.00	6.72		5.80	4.94	4.23			76.00
VEH2	8.08	8.00	7.93	7.89		7.25	6.37	5.52			94.00
W 1Engraved W1	7.32	7.31	7.27	7.15		6.57	6.18	5.83			93.00
W 2Engraved W2	7.20	7.18	7.13	7.01		6.44	6.04	5.70			93.00
W. BÄREngraved BÄR	6.75		6.58			5.53		4.05			76.00
WILSON 2Engraved RG2W	6.72		6.65			5.17		3.72			76.00
WITT	7.09		7.00			5.62		4.00			76.00

Measurements from Reeds ’n Stuff, in mm. Forms marked * have ears.
